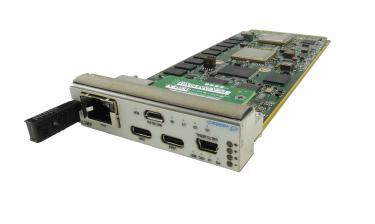

The AMC709 is a Processor AMC (PrAMC) in a single module, mid-size AdvancedMC (AMC) form factor based on the NXP LS1046A (quad core) processor. The unit provides 10GbE on Ports 4-7 and 8-11 per AMC.2.

AMC709 has Dual GbE on Ports 0-1 per AMC.2. The front panel provides GbE via RJ-45 plus dual USB 3.0 and RS-232 via MiniUSB connectors. The AMC709 has SATA routed to Port 2 of the AMC per AMC.3 specification. It also provides Serial Over Lan (SOL) to access the module serial port over IP.

The module comes with 8 GB of DDR4 memory with ECC, 128 MB NOR flash, 8 MB SPI flash, 512 KB I2C flash, and 64 GB of eMMC.

AMC709 is also available for rugged conduction-cooled applications (MTCA.2 or MTCA.3).

Key Features

• PrAMC with NXP Layerscape LS1046A (A72 Core)

• 8 GB DDR4 with ECC

• 10GbE on Ports 4-7 and 8-11 per AMC.2

• Dual GbE per AMC.2 on Ports 0-1

• SATA per AMC.3 on Port 2

• Front panel GbE

• 64 GB of Flash

• Dual USB3.0

• Serial Over Lan (SOL)

• Single-module, mid-size per AMC.0

• Conduction Cooled option available
