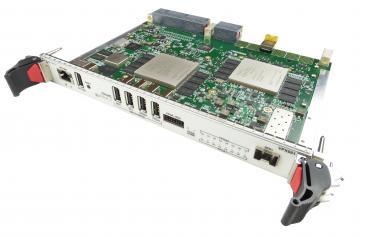

The VPX551 provides dual Kintex UltraScale™ XCKU115 FPGAs which interface directly to rear I/O via SERDES, LVDS and fiber. Each FPGA is supported by 16 GB of 64-bit wide DDR4 (2 x Bank of 8GB) and 1 GB flash. Rear panel fiber I/O is via six VITA 66.5 x12 modules, each of which can be populated as transmit or receive. The front panel fiber I/O is via SFP+. The two FPGAs are connected by four SERDES lanes for high speed communication.

The VPX551 includes platform health management/monitoring capability using VadaTech’s field-proven IPMI software. An on-board management controller has the ability to access board sensors and manage FPGA image updates.

The unit is available in a range of temperature and shock/vib specifications per ANSI/VITA 47, up to V3 and OS2.

Please contact VadaTech for details of Conduction Cooled versions.

Key Features
