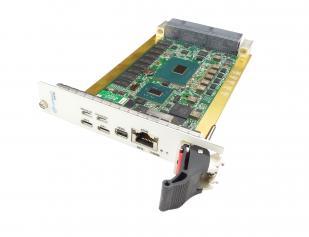

3U Intel Xeon E3处理器卡

The VPX756 is a Processor VPX (PrVPX) in 3U form factor based on the Intel® Xeon® Processor E3-1505M v6 (Kaby Lake) with CM238 PCH. The processor base frequency is 3.0 GHz with max turbo frequency of 4.0 GHz.

The module provides dual PCIe Gen3 x4 or single x8, dual GbE, and SATA on P1. It also provides GbE to the front panel as well as dual USB3.0, DP and RS-232.

The VPX756 provides up to 16 GB of DDR4 memory with ECC and 64 GB of Flash for the OS. The module has Serial over LAN (SoL).The BIOS allows booting from on-board Flash, off-board SATA, PXE boot and USB. There are dual USB 3.0 type C connectors for extended storage or peripherals.

Linux OS is standard on the VPX756, consult VadaTech for other options

Key Features

  • Processor VPX (PrVPX) Intel® Xeon® Processor E3-1505M v6 (Kaby Lake)

  • PCIe Gen3 x4 or dual PCIe x8

  • Serial Over LAN (SOL)

  • 16 GB of DDR4 memory with ECC

  • 64 GB of Flash memory

  • IPMI version 2.0

  • Dual SATA Gen2 Ports
