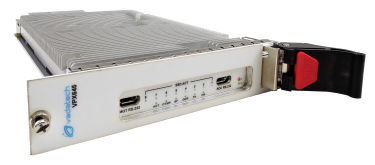

The VPX645 is full ROC Host Bus Adapter (HBA) which supports RAID level 0, 1, 5, 6, 10, 50 and 60. The module supports End-to-End CRC (ECRC) and advanced Error Reporting (AER). The NVMe storage provides high speed and low latency read/write to the SSD devices.

The module has up to 16 NVMe storage devices and an additional 8GB of DDR4 with ECC.

The VPX645 has PCIe Gen3 x8 or single x4 routed to the P1 connector.

The VPX645 is available in both air-cooled and rugged conduction-cooled versions (contact sales for details).

Key Features

• 3U VPX NVMe Host Bus Adapter with Full support for RAID

• Dual Core ARM A15 RAID On Chip (ROC)

• On board 8 GB of DDR4 Memory with ECC

• Hardware Engine for RAID 5 and RAID 6 acceleration

• PCIe Gen3 x8 or x4
