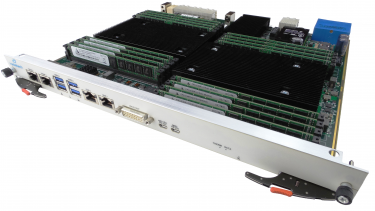

The ATC127 is a high performance ATCA processor blade featuring dual 14-core Intel® Xeon® processor (E5-2658 v4, E5-2680 v4, E5-2648L, 2618L, 2620 or 2630 v4), with eight banks of memory up to 256 GB DDR4 memory. Versatile connectivity includes two PCIe Gen3 x16 Fabric Interfaces, dual GbE Base Interfaces, dual front panel GbE egress ports, front panel dual RS-232 and USB 3.0/2.0 ports and front panel DVI-I connector. On-board mSATA storage is available for local boot.

The ATCA blade is PXI-boot capable via any of the on-board Ethernet interfaces. It offers Serial over LAN (SOL) utilizing Hardware Random Number Generation (RNG) to form a secure session. The ATC127 has dual redundant BIOS-boot capability with multiple WDT for fail-safe, before and after OS boot.

The ATC127 can be ruggedized for harsh environments and comes with conformal coating per customer ordering options.

Key Features

• Dual 14-core Intel® Xeon® E5-2658, 2680, 2648L , 2618L, 2620, 2630 v4 processors

• Eight banks of DDR4 for up to 256 GB memory

• PCIe Gen3 x16 Fabric channels

• GbE and 10 GbE, graphics and USB on front panel

• IPMI Management Controller with Serial Over LAN capabilities (SOL)

• Trusted Platform Module (TPM)

• BIOS redundancy boot with multiple Watch Dog Timers (WDT) for fail-over, before and after BIOS boot
