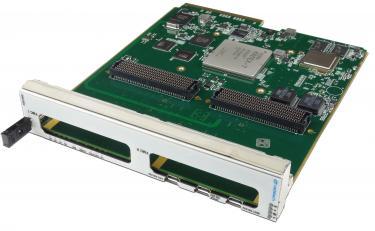

The AMC502 is an AMC FPGA Carrier with dual FMC (VITA 57) interface. The AMC502 is compliant to the AMC.1, AMC.2 and/or AMC.4 specification. The unit has an on-board, reconfigurable FPGA which interfaces directly to AMC FCLKA, TCLKA-D, FMC DP0-3, and all FMC LA/HA/HB pairs. Port 3 can be routed as LVDS.

The AMC502 has an on-board crystal-referenced clock source to provide at least 125 MHz as GTX reference inputs for PCIe, SRIO and GbE. The iMX6 CPU is a quad core ARM processor at 1 GHz for power-efficient distributed processing.

The AMC502 has dual FMC connectors per VITA-57 allowing the versatility of various FMC modules to be implemented.

Key Features

1) AMC FPGA carrier for dual FPGA Mezzanine Card (FMC) per VITA-57

2) Double module, mid-size ( full-size optional)

3) Xilinx Kintex-7 FPGA (XC7K420T) in a FFG1156 package

4) AMC Ports 4-7 and 8-11 are routed to FPGA per AMC.1,AMC.2 and AMC.4 (protocols such as PCIe, SRIO, XAUI,etc. are FPGA programmable)
