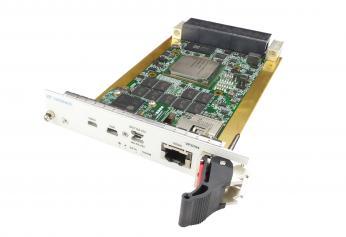

The VPX754 is a processor module (VITA-46) for general purpose processing in demanding applications. Based on the Intel 5th generation Xeon 16-cores D-1577, 8-cores D-1548 or 4-cores D-1520 processor, the efficient SoC design has low power consumption and integrated PCH technology.

The module provides PCIe Gen3 dual x4 or single x8, dual GbE and SATA on P1. It also provides 10 GbE to the front panel.

The VPX754 provides 16 GB of DDR4 memory with ECC and Flash for the OS. The BIOS allows booting from on board Flash, off-board SATA, PXE boot and USB. A USB for extended storage or peripherals is provided to the front panel.

Linux OS is standard on the VPX754, consult VadaTech for other options.

The unit is available in a range of temperature and shock/vib specifications per ANSI/VITA-47, up to V3 and OS2.

Key Features

• 3U VPX module Intel 5^th Generation Xeon D-1577, D-1548 or D-1520 (Broadwell) SoC

• PCIe Gen3 dual x4 or single x8

• Front-panel video out via micro HDMI

• Dual GbE ports

• Dual SATA Gen3 ports
