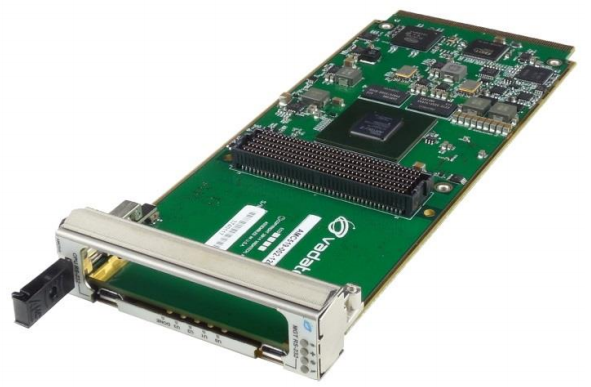

The AMC519 is an AMC FPGA Carrier for FMC per VITA 57. The module is compliant to the AMC.1, AMC.2 and/or AMC.4 specification. It has an on-board, re-configurable FPGA which interfaces directly to the AMC FCLKA, TCLKA-D, FMC DP0-3 and all FMC LA/HA/HB pairs. The FPGA has interfaces to two DDR3 memory channels (each 16-bit wide) providing a total of 512 Mbytes. This allows for large buffer sizes to be stored during processing as well as for queuing the data to the host.

With a FMC site per VITA 57, each AMC519 in the system has a whole array of mezzanine options available in the marketplace.

Key Features

• AMC FPGA carrier for FMC per VITA-57

• Xilinx Artix-7 FPGA in FBG-676 package

• AMC Ports 0 and 1 as GbE to FPGA

• AMC Ports 4 and 8 are routed to FPGA per AMC.1, AMC.2 and AMC.4 (protocols such as PCIe, SRIO, GbE, etc. are FPGA programmable)

• Clock jitter cleaner

• IPMI 2.0 compliant
