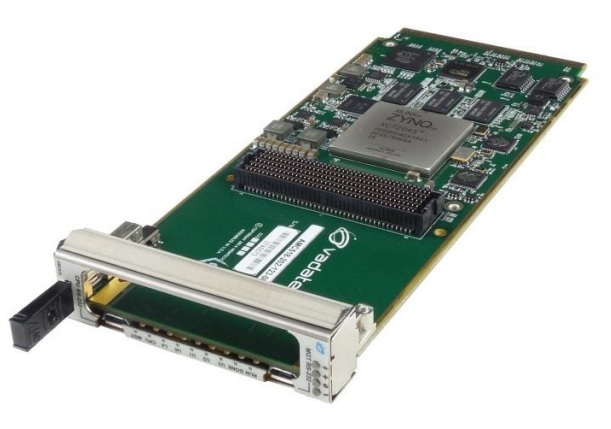

The AMC518 is an AMC FPGA Carrier for FMC per VITA 57. The AMC518 is compliant to the AMC.1, AMC.2 and/or AMC.4 specification. The unit has an on-board, re-configurable FPGA which interfaces directly to the AMC FCLKA, TCLKA-D, FMC DP0-7 and all FMC LA/HA/HB pairs. The FPGA has an interface to a single DDR3 memory channel (64-bit wide). This allows for large buffer sizes to be stored during processing as well as for queuing the data to the host. The CPU has a separate single bank of DDR3 (32-bit wide).

With a FMC site per VITA 57, each AMC518 in the system has a whole array of mezzanine options available in the marketplace.

Key Features

• AMC FPGA carrier for FMC per VITA-57

• Xilinx Zynq-7000 FPGA in FFG-900 package(XC7Z100 or XC7Z045) with embedded ARM®

• Supported by DAQ Series™ data acquisitionsoftware

• AMC Ports 4-11 are routed to FPGA per AMC.1,AMC.2 and AMC.4 (protocols such as PCIe,SRIO, XAUI, etc. are FPGA programmable)

• Single module, mid-size AMC (full-size optional)

• AMC FCLKA, TCLKA, TCLKB, TCLKC andTCLKD are routed

• IPMI 2.0 compliant
