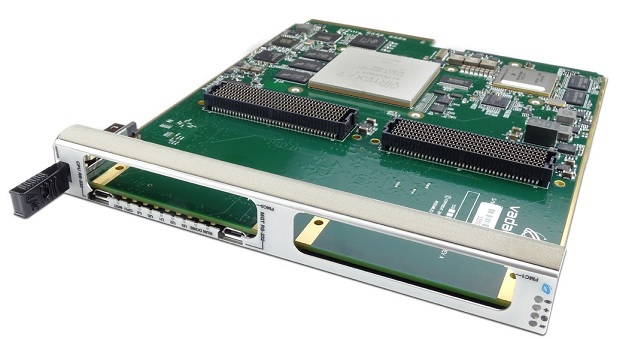

The AMC525 is an AMC FPGA Carrier with dual FMC (VITA 57) interfaces. The AMC525 is compliant to the AMC.1, AMC.2 and/or AMC.4 specification. The unit has an on-board, re-configurable FPGA which interfaces directly to the AMC FCLKA, TCLKA-D, FMC DP0-9 and all FMC LA/HA/HB pairs. The FPGA has interface to DDR3 memory channels (64-bit wide and 16-bit wide). This allows for large buffer sizes to be stored during processing as well as for queuing the data to the host.

The AMC525 has Dual FMC sites per VITA-57 allowing the versatility of various FMC modules to be implemented.

The on-board quad core P2040 can run at 1.2 GHz with 1 GB of DDR3, 128 MB of Boot Flash, and a 32 GB SD Card. The PPC has 4x PCIe interface to the FPGA in addition to its local bus. The PPC has its dual GbE routed to ports 0 and 1 of the AMC via a mux to allow FPGA routing as well.

The AMC525 has Serial over LAN (SOL) per IPMI specification. It has a hardware RNG for secure session

Key Features

• AMC FPGA carrier for Dual FPGA Mezzanine Card (FMC) per VITA-5

• Xilinx Virtex-7 690T FPGA in FFG-1761 package

• Double module, mid-size (full-size optional)

• AMC Ports 4-11 are routed to FPGA per AMC.1, AMC.2 and AMC.4 (protocols such as PCIe, SRIO, XAUI, etc. are FPGA programmable)

• AMC FCLKA, TCLKA, TCLKB, TCLKC and TCLKD are routed

• Clock jitter cleaner

• Option for on-board Freescale QorIQ PPC2040

• Serial over LAN (SOL) with hardware Random Number Generator (RNG)

• JTAG port

• IPMI 2.0 compliant
